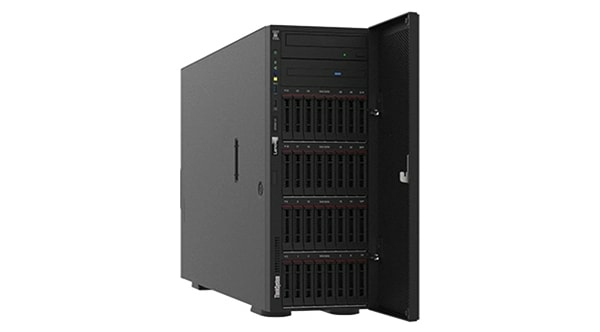

Enterprise performance and flexibility. Compact footprint. ThinkSystem ST650 V2 is a highly capable 4U tower server that provides the performance and reliability you expect from the data center, optimized for office environments.Named CRN's Product of the Year for 2022.
The ThinkSystem ST650 V2 represents the next wave in highly configurable tower systems to support new use cases, technology, and workload optimization for the modern enterprise. New 3rd generation Intel® Xeon® processor Scalable family CPUs offer outstanding performance and memory capacity for large database and virtual machine deployments, with support for PCIe Gen4 networking reducing data bottlenecks throughout the IT environment.
Accelerate data insights
ThinkSystem ST650 V2 is future proof with 8 single-width(DW), 4 double-width (DW), or a combination of 4 SW and 4 DW GPUs. Processing is offloaded to the GPU to maximize computing power and application performance, and the server is optimized to process large blocks of data in parallel. This high-performance parallel computing makes the ST650 V2 ideal for enterprise-class AI and VDI workloads bringing supercomputing power to the remote office.
Configuration flexibility
Significant improvements in onboard storage capabilities enable the ST650 V2 to tackle immense data growth in burgeoning IT environments, notably in remote office and edge use cases. Support for up to 16 hyper-fast NVMe drives for a total of 32x 2.5-inch drives enables rapid data ingest capabilities to address the explosion of internet of things (IoT) devices and sensors feeding data growth.
Technical Specification
Processor
Processor manufacturer
Intel
Processor family
Intel Xeon Silver
Processor model
4309Y
Processor frequency
2.8 GHz
Processor boost frequency
3.6 GHz
Processor cache
12 MB
Number of processors installed
1
Memory
Internal memory
32 GB
Internal memory type
DDR4-SDRAM
Memory clock speed
3200 MHz
Memory layout (slots x size)
1 x 32 GB
Storage
RAID support
Yes
RAID levels
0, 1, 5, 6, 10, 50, 60
Supported RAID controllers
940-8i 4GB
Graphics
Maximum graphics card memory
16 MB
Network
LAN controller
Broadcom 57416
Ethernet LAN
Yes
Cabling technology
10/100/1000Base-T(X)
Ethernet interface type
10 Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports
3
USB 2.0 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
Design
Chassis type
Tower (4U)
Product colour
Black
Rack mounting
Yes
Performance
Performance management
XClarity Enterprise
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Software
Operating system installed
No
Compatible operating systems
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
The ThinkSystem ST650 V2 represents the next wave in highly configurable tower systems to support new use cases, technology, and workload optimization for the modern enterprise. New 3rd generation Intel® Xeon® processor Scalable family CPUs offer outstanding performance and memory capacity for large database and virtual machine deployments, with support for PCIe Gen4 networking reducing data bottlenecks throughout the IT environment.
ThinkSystem ST650 V2 is future proof with 8 single-width(DW), 4 double-width (DW), or a combination of 4 SW and 4 DW GPUs. Processing is offloaded to the GPU to maximize computing power and application performance, and the server is optimized to process large blocks of data in parallel. This high-performance parallel computing makes the ST650 V2 ideal for enterprise-class AI and VDI workloads bringing supercomputing power to the remote office.
Significant improvements in onboard storage capabilities enable the ST650 V2 to tackle immense data growth in burgeoning IT environments, notably in remote office and edge use cases. Support for up to 16 hyper-fast NVMe drives for a total of 32x 2.5-inch drives enables rapid data ingest capabilities to address the explosion of internet of things (IoT) devices and sensors feeding data growth.
